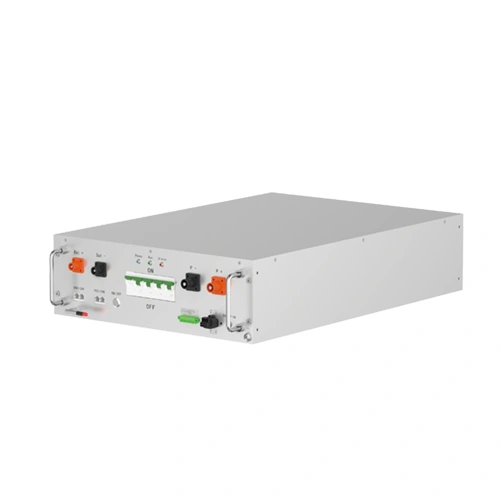

| Product Model | | HV-PDU 1000VDC100A(WIFI) (A06) |
| Operating Voltage | 250~1000Vdc |  |
| Rated Charge/Discharge Current | 50A |
| Max. Charge/Discharge Current | 100A |
| Operating Temperature Range | -10℃~55℃ |
| Waterproof Rating | IP20 |
| Dimension(Wide*Depth*High) | 517*745*155mm |
| Weight | ~22kg |
| Parallel Connection | Support |

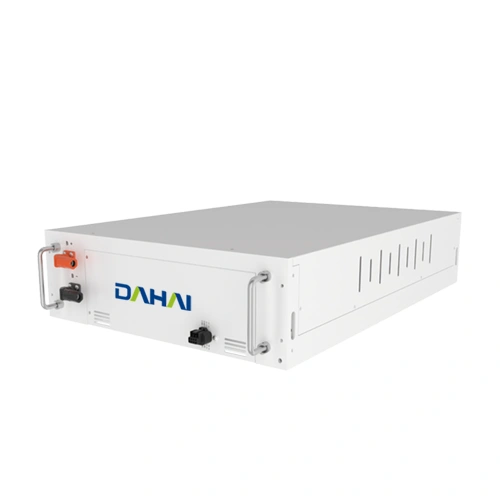

| Product Model | | HV-Tower-32S100 |
| Battery Type | LiFePO4(LFP) |  |
| Rated Voltage | 102.4Vdc |
| Rated Capacity | 100Ah |
| Rated power | 10.24kW |
| Rated Charge/Discharge Current | 50A |
| Max. Charge/Discharge Current | 100A |
| Operating Temperature Range | -10℃~55℃ |
| Waterproof Rating | IP20 |
| Dimensions (W*D*H) | 517*745*155mm |
| Weight | ~88kg | |
| Product Model | DH-X-HV-Series |
| Main Parameter | |
| Battery Type | LiFePO4 |
| Module Power(kWh) | 10.24 |
| Module Nominal Voltage(V) | 102.4 |
| Rated Energy(Ah) | 100 |
| No of System Module Series Connections (Optional) | 3 4 5 6 7 |
| System Rated Voltage(V) | 307.2 409.6 512 614.4 716.8 |
| System Operation Voltage(V) | 268.8-345.6 358.4-460.8 448-576 537.6-691.2 672.2-806.4 |
| System Rated Power(kWh) | 30.72 40.96 51.2 61.44 71.68 |
| System Discharge Power(kWh) | 29.49 39.32 49.15 58.98 68.81 |
| Charge/Discharge Current (A) | Rated Current --50 |
| Max. Current --100 |
| Overload Current --115(10sec,25°C) |
| Status Indicator Light | Blue: battery system start status, green: battery system running status, red: battery system fault status |
| Communication Protocol | CAN2.0 |
| Working Temperature Range | -10°C- 55°C |
| Working Humidity Range | ≤95% (No condensation) |
| Working Altitude | ≤2000m |
| System Cooling Method | Fan cooling |
| Waterproof Grade | IP20 |
| Installation Location | Indoor |
| Net Weight (kg) | 45+90*N(N is the number of modules) |
| Max. Size (mm) | 765*577*1380 |
| Storage Temperature | 0~35 |
| Recommended Discharge Depth | 90% |
| Cycle Life | ≤8000 Cycles (25°C+2°C,0.5C,80%DOD@65%EOL) |
| Certification | Cell:UL1973/EC62619/UL9540A/TUV/CE/MSDS/UN38.3 |
| Warranty | 5 Years(Under Warranty Terms) |
| Energy Throughput | 67MWh 89MWh 112MWh 134MWh 156MWh |
Key Features
- High voltage energy storage system
- Stackable modular design for flexible configuration
- Space-efficient structure for installation
- Suitable for integration with compatible solar power systems
- Modular architecture for convenient system integration
- Designed for energy storage and power management applications
- Practical solution for different energy storage projects
Applications
The DH-X-HV-716V100Ah High Voltage Stackable Energy Storage System is suitable for solar energy storage, distributed energy storage, backup power, and other applications requiring a modular high-voltage battery energy storage solution.
