Baterie de stocare a energiei pentru montare pe perete – DAHAI DH-CNB-231005

Acesta DAHAI DH-CNB-231005 Wall Mounted Energy Storage Battery is a modular lithium battery energy storage system designed for residential solar energy storage and backup power applications. It can store electricity generated by a home photovoltaic system and provide reliable power when needed.

The system features a compact wall-mounted design that saves floor space and is suitable for residential energy storage installations. Its modular structure allows convenient maintenance and component replacement, while the integrated BMS module and protection switch provide battery management and safety protection during operation.

Categorie: Baterii

Descriere
Recenzii (0)

Product Parameters
Product Model	DH-CNB-231005
Nominal Voltage	51,2 V
Rated Capacity	104Ah
Operating Voltage	42 V ~ 58,4 V
Standard Charging Current	50A
Max. Charging Current	100A
Max. Discharge Current	100A
Temperatura de funcționare	0~40℃(Charging)-20~40℃(Discharging)
Storage Temperature	65%±20RH-10℃~35℃(1 month)25℃±2(3 months)
Communication	CAN/RS485
Durata de viață a ciclului	＞6000 cycles@25℃50A charge and discharge 90%DOD
Altitudine	0~3000
Waterproof Level	IP20
Humidity Range	5%~80%
Packaging Information	Net size：580460172.4mm Carton packing：630500260mm Pallet(11.11.2m)per pallet：14 boxes 20-foot container：150boxes40-foot container：300boxes
Weight/kg	Net weight：48±3 Packing weight：50

Caracteristici principale

Wall-mounted design for space-saving residential installation
Modular battery structure for convenient maintenance and replacement
Integrated BMS module for battery monitoring and management
Trip protection switch for electrical safety protection
Dedicated positive and negative terminals for easy system connection
Suitable for home solar energy storage and backup power applications
Designed for integration with residential solar inverter systems

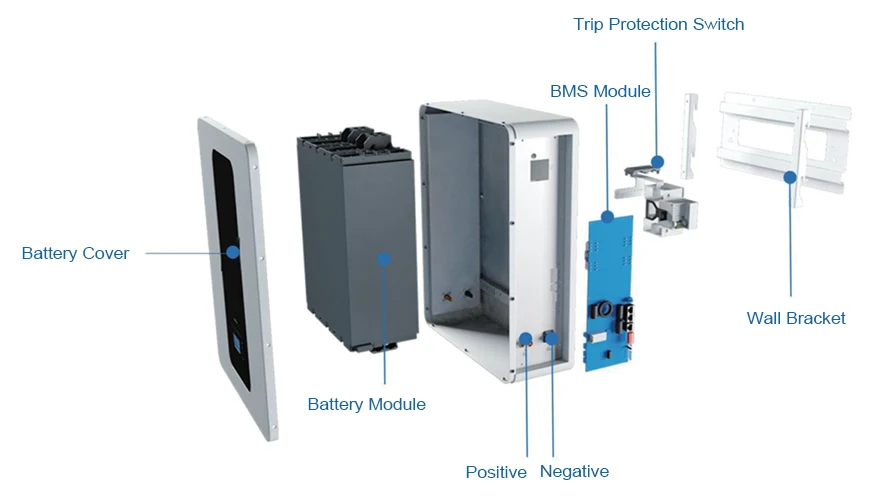

Main Components

Battery Cover – Provides protection for the internal battery components and a clean exterior design.
Battery Module – The core energy storage component of the system.
BMS Module – Manages battery charging and discharging while providing battery protection.
Trip Protection Switch – Provides protection against electrical faults such as overload and short circuit.
Wall Bracket – Supports secure wall-mounted installation and helps save indoor space.

Aplicații

Acesta DH-CNB-231005 home energy storage battery is suitable for residential photovoltaic energy storage, home backup power, and other household energy storage applications. It can be connected with compatible solar inverters to build an integrated home solar energy storage system.
