| MECHANICAL PROPERTIES | |
|---|---|
| Cell Type | Monocrystalline-N-type |
| Component Weight | 28kg |
| Component Size | 2279x1134x35mm |
| Number of Cells | 144(6×24) |
| Cable Cross-Sectional Area | 4 mm² |
| Junction Box | IP68, 3 diodes |
| Connector | MC4-EVO2 |
| Packaging Information | 31 pieces/pallet 620 pieces /40’container |
| ELECTRICAL PERFORMANCE PARAMETERS UNDER STC | |||||||
|---|---|---|---|---|---|---|---|
| Model | DHM72T31- 555/TP | DHM72T31- 560/TP | DHM72T31- 565/TP | DHM72T31- 570/TP | DHM72T31- 575/TP | DHM72T31- 580/TP | DHM72T31- 585/TP |
| Maximum Power (Pmax) [W] | 555 | 560 | 565 | 570 | 575 | 580 | 585 |
| Voltage at Maximum Power Point (VMP) [V] | 42.95 | 43.25 | 43.55 | 43.85 | 44.15 | 44.45 | 44.75 |
| Current at Maximum Power Point (lmp) [A] | 12.92 | 12.95 | 12.97 | 13.00 | 13.02 | 13.05 | 13.07 |
| Open Circuit Voltage (Voc) [V] | 50.10 | 50.30 | 50.50 | 50.70 | 50.90 | 51.10 | 51.30 |
| Short Circuit Current (Isc) [A] | 14.01 | 14.07 | 14.13 | 14.19 | 14.25 | 14.31 | 14.37 |
| Component Efficiency [%] | 21.48% | 21.67% | 21.86% | 22.06% | 22.25% | 22.44% | 22.64% |
| Power Tolerance | 0～+5 | ||||||
| Temperature Coefficient of Pmax | -0.29%/℃ | ||||||
| Temperature Coefficient of Voc | -0.25%/℃ | ||||||
| Temperature Coefficient of Isc | 0.044%/℃ | ||||||
| Standard Test Environment | lrradiance 1000W/㎡,cell temperature 25°C, spectrum AM1.5 | ||||||
Product Description

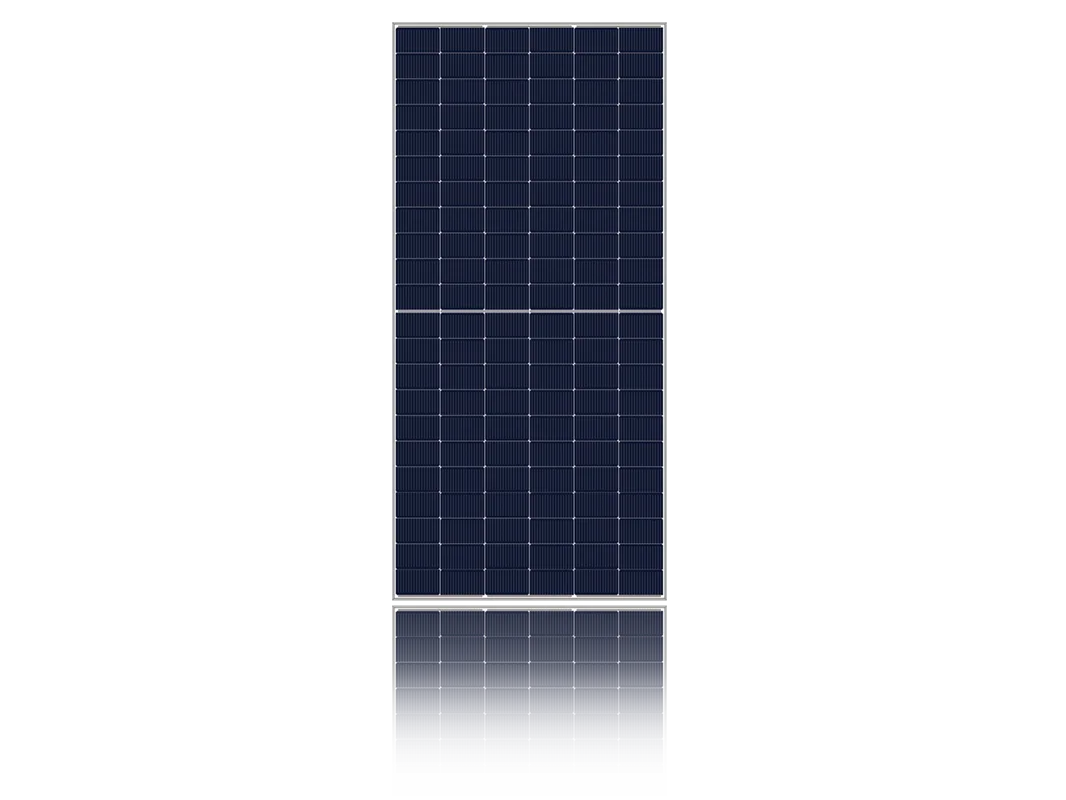

The DHM72T31-TP is a high-efficiency N-type solar module with a rated power output ranging from 555W to 585W. Designed to deliver strong and stable power generation, it provides an efficient photovoltaic solution for commercial, industrial and large-scale solar installations.
Advanced N-type cell technology supports excellent energy conversion and reliable long-term performance. Its high module wattage allows more system capacity to be installed within a limited area, making it suitable for projects that require efficient use of rooftop or ground space.
Caracteristici principale
- Power output ranging from 555W to 585W
- Advanced N-type solar cell technology
- High conversion efficiency and energy yield
- Stable performance during long-term operation
- Optimized for efficient use of installation space
- Suitable for commercial and large-scale PV systems
- Reliable construction for demanding outdoor environments
Typical Applications
- Sisteme solare comerciale montate pe acoperișuri
- Industrial photovoltaic projects
- Ground-mounted solar installations
- Utility-scale solar power plants
- Distributed energy systems
- Solar EPC and renewable energy projects
High-Efficiency Solution for Diverse PV Projects
Combining N-type technology with high power output, the DHM72T31-TP helps maximize installed capacity and power generation across a wide range of photovoltaic applications. Its high wattage can also reduce the number of modules, mounting components and electrical connections required for a specified system capacity, supporting optimized balance-of-system costs.
Contact DAHAI SOLAR for product datasheets, detailed technical parameters, project quotations and customized photovoltaic solutions.
