| Model No | HonS1.5K | HonS2K | HonS2.7K | HonS3K | HonS3.3K | HonS3.6K | HonS4K |
|---|---|---|---|---|---|---|---|
| Input | |||||||
| Max. DC Input Power | 3000W | 4000W | 5400W | 6000W | 6600W | 7200W | 8000W |
| Max. DC Input Voltage | 550V | ||||||
| Max. DC Input Current | 20A | ||||||
| MPPT Voltage Range | 40-550V | ||||||
| Recommended MPP Operating Voltage | 360V | ||||||
| No.of MPPT | 1 | ||||||
| Max. No. of Strings Per MPPT | 1 | ||||||
| Output | |||||||
| Rated Output Power | 1500W | 2000W | 2700W | 3000W | 3300W | 3600W | 4000W |
| Max. Output Power | 1650VA | 2200VA | 2970VA | 3300VA | 3630VA | 3960W | 4400VA |
| Max. Output Current | 7.5A | 10A | 13.5A | 15A | 15A | 16.5A | 18.5A |
| Rated Grid Voltage | 220/230/240V | ||||||
| Grid Voltage Range | 90-290Vac | ||||||
| Rated Grid Fraquency | 50Hz/60Hz | ||||||
| Grid Frequency Range | 45-55Hz/55-65Hz | ||||||
| THD | ＜3% (Under rated power) | ||||||
| Power Factor | ＞0.99 (Under rated power) / Adjustable range: 0.8 leading-0.8 lagging | ||||||
| DC Current Injection | ＜0.5% (Under rated power) | ||||||
| System Dala | |||||||
| Max. Efficiency | 98.00% | ||||||
| Euro. Efficiency | 97.00% | ||||||
| Humidity Range | 0-100% non-condensing | ||||||
| Cooling Type | Natural cooling | ||||||
| Temperature Range | -25~+60°C | ||||||
| Power Consumption at Night | ＜1W | ||||||
| Max. Working Altitude | 4000m | ||||||
| Display | LED(optional: LCD) | ||||||
| Communication Interface | WIFI(optional: RS485 or GPRS) | ||||||
| Protection | |||||||
| DC Reverse-Polarity Protection | Yes | ||||||
| Short Circuit Protection | Yes | ||||||
| Output Over Current Protection | Yes | ||||||
| Output Over Voltage Protection | Yes | ||||||
| Insuation Resistance Monitoring | Yes | ||||||
| Residual Current Detection | Yes | ||||||
| Surge Protection | Yes | ||||||
| Grid Monitering | Yes | ||||||
| lslanding Protection | Yes | ||||||
| Temperature Protection | Yes | ||||||
| Integrated DC Switch | Optional | ||||||
| Mechanical Data | |||||||
| Dimensions (W*H*D) | 295*210*120mm | ||||||
| Weight | 5.5kg | ||||||
| Protection Class | IP66 | ||||||

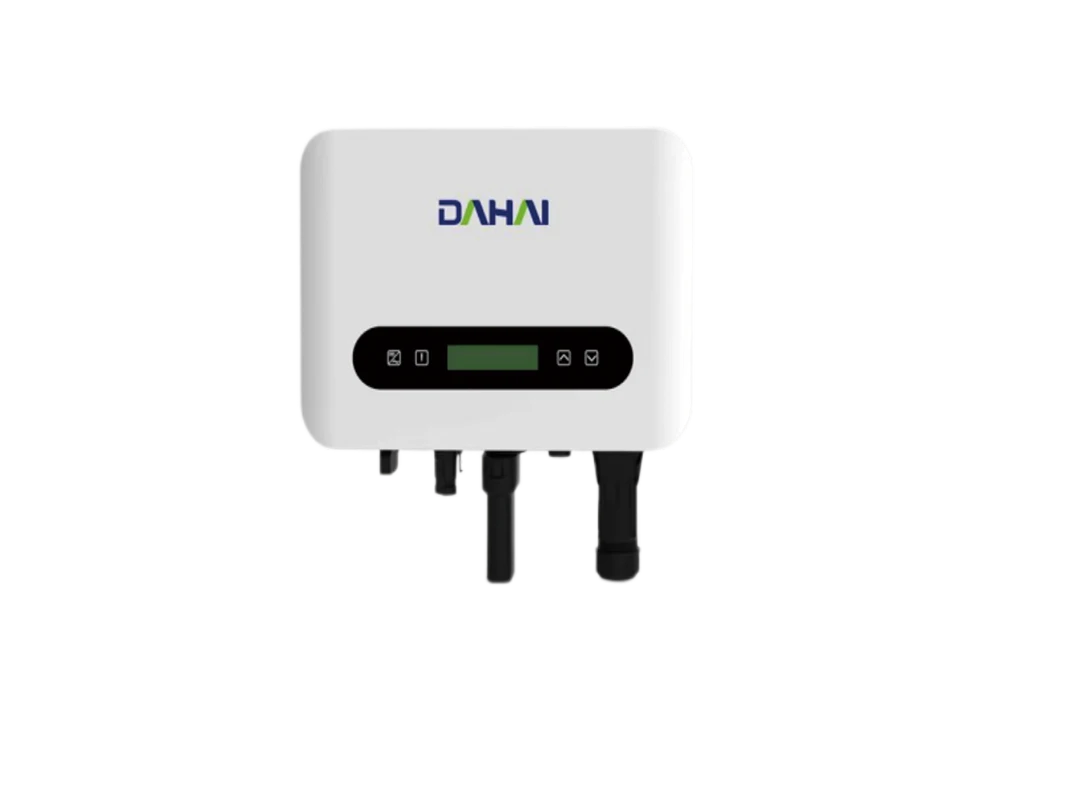

With a compact design and intelligent solar power conversion technology, the HonS series is suitable for homeowners, solar installers, system integrators and distributed photovoltaic projects.
Key Features
Single Phase Grid-Connected Design
The HonS series is specifically designed for single-phase photovoltaic systems and provides a practical solution for residential and small-scale grid-connected solar installations.
Multiple Power Options
The series includes HonS-1.5K, HonS-2K, HonS-2.7K, HonS-3K, HonS-3.3K, HonS-3.6K and HonS-4K, allowing system designers and installers to select a suitable inverter according to the solar system configuration.
Efficient Solar Energy Conversion
The inverter converts DC power from photovoltaic modules into AC power for use by electrical loads and grid-connected operation, helping improve the utilization of solar-generated electricity.
Flexible Residential Solar Solution
The HonS series is suitable for different residential PV system configurations and can be integrated into rooftop solar projects, household photovoltaic systems and other distributed solar applications.
Intelligent Operation
The inverter is designed to manage solar power conversion automatically during normal operation, helping provide stable and reliable energy conversion for grid-connected PV systems.
Easy System Integration
The compact and practical design makes the HonS series convenient for solar installers and system integrators to incorporate into different photovoltaic projects.
Applications
The Single Phase On Grid Inverter can be widely used in:
- Residential rooftop solar systems
- Home photovoltaic systems
- Small-scale solar power systems
- Distributed photovoltaic projects
- Residential solar energy projects
- Small commercial PV systems
- Grid-connected solar installations
- Solar energy retrofit projects
Why Choose HonS Single Phase On Grid Inverter?
The HonS series provides a flexible solution for customers looking for a reliable single phase grid-tied inverter for residential and distributed photovoltaic applications.
With several power models available, the series can accommodate different PV system designs while providing efficient DC-to-AC power conversion. It is suitable for solar installers, distributors, EPC companies and system integrators seeking a practical single-phase solar inverter for grid-connected applications.
FAQ
What is a single phase on grid inverter?
A single phase on grid inverter is a solar inverter designed to convert DC electricity generated by photovoltaic panels into AC electricity for use in a grid-connected electrical system.
What models are available in the HonS series?
The HonS series includes HonS-1.5K, HonS-2K, HonS-2.7K, HonS-3K, HonS-3.3K, HonS-3.6K and HonS-4K.
What applications is the HonS series suitable for?
The HonS series is mainly designed for residential rooftop PV systems, household solar projects, distributed photovoltaic systems and other small-scale grid-connected solar applications.
Is HonS suitable for residential solar systems?
Yes. The single-phase configuration and multiple power options make the HonS series suitable for a variety of residential photovoltaic system designs.
What is the difference between an on-grid inverter and a hybrid inverter?
An on-grid inverter is primarily designed to connect a solar PV system with the utility grid, while a hybrid inverter can integrate solar generation with battery energy storage and other energy management functions. The HonS series is designed for grid-connected PV applications.
