High Voltage Stackable Energy Storage System

High Voltage Stackable Energy Storage System –DH-X-HV-460V206Ah

The DH-X-HV-460V206Ah High Voltage Stackable Energy Storage System is a modular energy storage solution designed for applications that require flexible and efficient energy storage. Its stackable configuration provides a practical system architecture while making better use of installation space.

The system is suitable for integration with compatible solar power and energy management systems. Its modular structure allows the energy storage system to be configured according to different project requirements, making it a practical choice for residential and other distributed energy storage applications.

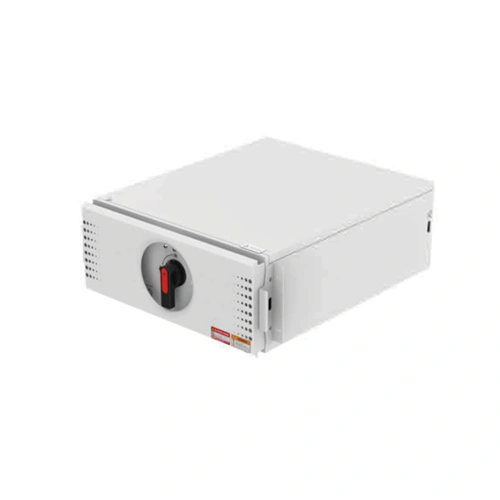

PDU		HV-PDU 1000VDC103A(WIFI)
Operating Voltage	250~1000V
Rated Charge/Discharge Current	120A
Max.Charge/Discharge Current	130A
Operating Temperature Range	-10°C~55°C
Weight	≈28kg
Waterproof Rating	IP20
Dimensions (W x D x H)	558695235mm

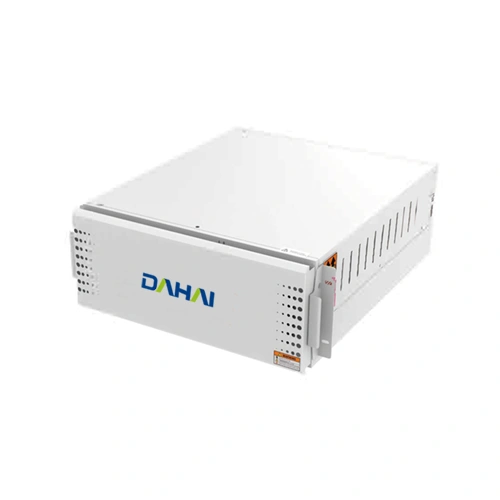

Module		HV-Tower-76.8V206Ah
Battery Type	LiFePO4(LFP)
Rated Voltage	76.8Vdc
Rated Capacity	206Ah
Rated Energy	16kWh
Rated Charge/Discharge Current	120A
Max. Charge/Discharge Current	130A
Operating Temperature Range	-10°C~55°C
Waterproof Rating	IP20
Weight	≈125kg
Dimensions (W x D x H)	559690235mm

Model	DH-X-HV- 460V206Ah
Main Parameter
Battery Type	LiFePO4
Module Nominal Energy(kWh)	16
Mini. Energy of Module (kwh)	15.5
Module Nominal Voltage (V)	76.8
Rated Capacity(Ah)	206
No. of System Module Series Connectians (Opfonal)	4 5 6
Rated Voltage of the System(V)	307.2 384 460.8
System Working Voltage(V)	268.8-345.6 336-432 403.2-518.4
System Nominal Energy(kVVh)	64 80 96
Mini. Discharge Energy of the System (kWh)	60.74 75.93 91.12
Charge/Discharge Current (A)	Rated Current --- 120
	Max. Current ---130
	Overload Current ---150(10sec,25°C)
Status lndicator Light	Blue: Battery system start status, green: Battery system operation status, Red:Battery system fault status
Communication Protocol	CAN2.0
Operating Temperature Range (°C)	-10°C - 55°C
Operating Humidity Range	≤95% (No condensation)
Operating Altitude	≤2000m
System Cooling Method	Fan cooling
Waterproof Rating	IP20
Installation Place	Indoors
Net Weight (kg)	≈528-778
Dimensions (mm)	6761800707
Storage Temperature(°C)	0~35
Recommended Depth of Discharge (DOD)	90%
Fire Protection System	Aerosol (optional)
Cycle Life	≥8000 Cycles (25°C±2°C, 0.5C, 80%DOD@65%EOL)
Certification	5 Years(Under Warranty Terms)
Energy Throughput [1]	133MWh 166MWh 200MWh
Certification	Cell: UL 1973/IEC62619/CEIROHS/MSDS/UN38.3

Key Features

High voltage energy storage system
Stackable modular design
Space-efficient system configuration
Flexible solution for different energy storage applications
Suitable for integration with compatible solar power systems
Modular structure for convenient system installation and maintenance
Designed for reliable energy storage and management

Applications

The DH-X-HV-460V206Ah High Voltage Stackable Energy Storage System can be used in solar energy storage, distributed energy storage, backup power, and other applications requiring a modular high-voltage energy storage solution.
