| Model：DH7/11/22kwHJL Series | |||
|---|---|---|---|
| For | Europe | North America | |
| Power Input | Input Type | 1-Phase / 3-Phase | 1-Phase |
| Input Wiring Scheme | 1P+N+PE / 3P+N+PE | 1P+N+PE | |
| Rated Voltage | 230VAC±10% / 380VAC±10% | L1:100VAC±10% / L2:230VAC±10% | |
| Rated Current | 16A or 32A | 16A or 32A | |
| Grid Frequency | 50Hz or 60Hz | 50Hz or 60Hz | |
| Power Output | Output Voltage | 230VAC±10% / 380VAC±10% | L1:100VAC±10% / L2:230VAC±10% |
| Maximum Current | 16A or 32A | 16A or 32A | |
| Rated Power | 7kW 11kW or 22kW | 3.5KW / 7kW | |
| User Interface | Charge Connector | Type 2 / GBT | Type 1 Plug |
| Cable Length | 5m or Optional | 5m or Optional | |
| LED Indicator | Green/Blue/Red | Green/Blue/Red | |
| LCD Display | 4.3 Inch Touch Color Screen(Optional) | 4.3 Inch Touch Color Screen(Optional) | |
| RFID Reader | ISO/IEC 14443 RFID Card Reader | ISO/IEC 14443 RFID Card Reader | |
| Start Mode | RFIDCard/PasswordLogin(Optional) | RFIDCard/PasswordLogin(Optional) | |
| Communication | Backend | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional) | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional) |
| Charging protocol | OCPP-1.6J | OCPP-1.6J | |
| Safety and Certification | Energy Metering | Embedded Meter Circuit Component With 1% accuracy | Embedded Meter Circuit Component With 1% accuracy |
| Residual Current Device | DC 6mA+Type A AC 30mA | DC 6mA+Type A AC 30mA | |
| Ingress Protection | IP55 | IP55 | |
| Impact Protection | IK10 | IK10 | |
| Cooling Method | Natural Cooling | Natural Cooling | |
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection,Lightning Protection,Ground Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection,Lightning Protection,Ground Protection | |
| Certification | CE | CE | |
| Certification and Conformity | IEC61851-1,IEC62196-1/-2,SAE J1772 | IEC61851-1,IEC62196-1/-2,SAE J1772 | |

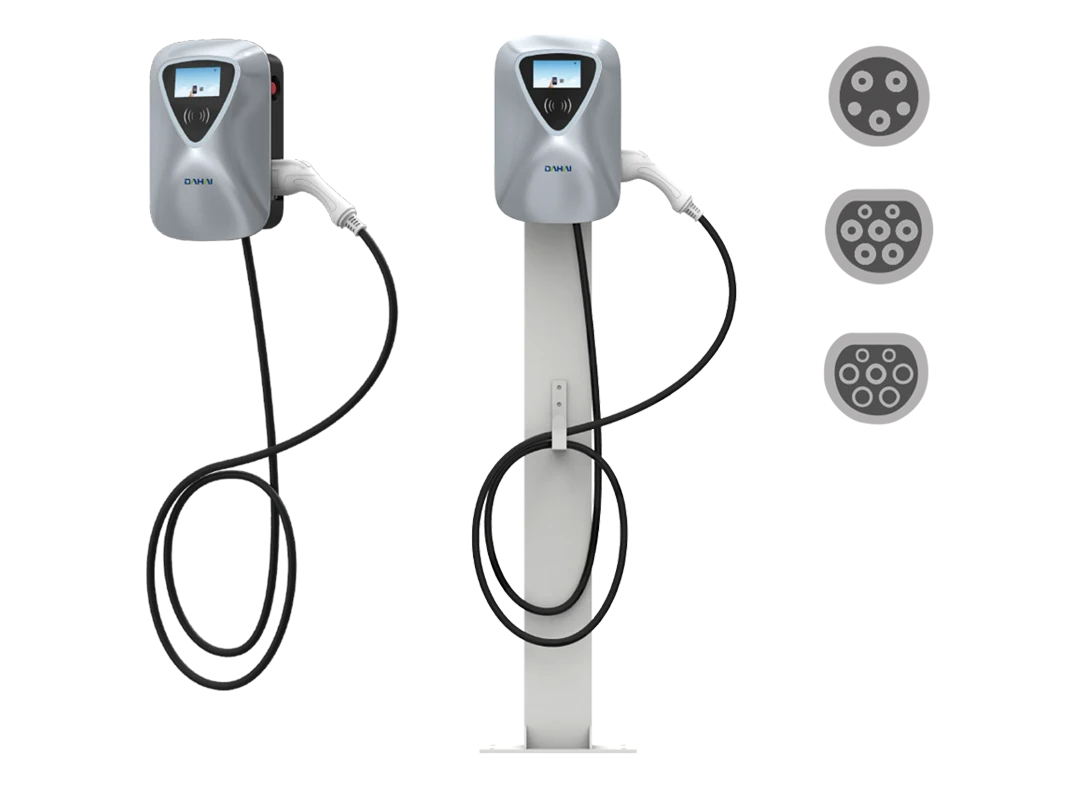

| Environment Mechanical | Mounting | Wall-mount/Pole-mount | Wall-mount/Pole-mount |
| Storage Temperature | -40℃ – +85℃ | -40℃ – +85℃ | |
| Operating Temperature | -30℃ – +50℃ | -30℃ – +50℃ | |
| Max. Operating Humidity | 95%，Non-condensing | 95%，Non-condensing | |
| Max. Operating Altitude | 2000m | 2000m | |
| Mechanical | Product Dimension | 348mm*258mm*175mm（L*W*H） | 348mm*258mm*175mm（L*W*H） |
| Package Dimension | 412mm*302mm*252mm（L*W*H） | 412mm*302mm*252mm（L*W*H） | |
| Weight | 4kg(Net ) / 14kg(Gross) | 4kg(Net ) / 14kg(Gross) | |
| Accessory | Cable Holder,Pedestal(Optional) | Cable Holder,Pedestal(Optional) | |
Applications
The DH HJL Series is suitable for:
- Private homes and residential communities
- Office buildings and business parks
- Hotels, shopping centres and supermarkets
- Public and commercial parking facilities
- Fleet charging and property management projects
- Solar-powered EV charging systems
- EV charging operators and distributors
Customized EV Charging Solutions
Dahai Solar provides customized EV charging solutions according to local voltage standards, charging power, connector type, communication method and installation requirements. OEM and ODM cooperation is available for distributors, project contractors and charging network operators.
Contact Dahai Solar to receive detailed specifications, pricing and a customized EV charging proposal.
