| MECHANICAL PROPERTIES | |
|---|---|
| Cell Type | 210R+N-type |
| Component Weight | 33.5kg |
| Component Size | 2382x1134x30mm |
| Number of Cells | 132(6×22) |
| Cable Cross-Sectional Area | 4 mm² |
| Junction Box | IP68, 3 diodes |
| Connector | MC4-EVO2 |
| Packaging Information | 36 pieces/pallet 720 pieces /40’container |
| ELECTRICAL PERFORMANCE PARAMETERS UNDER STC | ||||||
|---|---|---|---|---|---|---|
| Model | DHM66D60- 585/TP | DHM66D60- 590/TP | DHM66D60- 595/TP | DHM66D60- 600/TP | DHM66D60- 605/TP | DHM66D60- 610/TP |
| Maximum Power (Pmax) [W] | 585 | 590 | 595 | 600 | 605 | 610 |
| Voltage at Maximum Power Point (VMP) [V] | 39.52 | 39.75 | 40.03 | 40.25 | 40.50 | 40.70 |
| Current at Maximum Power Point (lmp) [A] | 14.80 | 14.84 | 14.86 | 14.91 | 14.94 | 14.99 |
| Open Circuit Voltage (Voc) [V] | 47.50 | 47.70 | 47.90 | 48.10 | 48.30 | 48.90 |
| Short Circuit Current (Isc) [A] | 15.64 | 15.67 | 15.70 | 15.73 | 15.76 | 15.80 |
| Component Efficiency [%] | 21.64% | 21.82% | 22.01% | 22.19% | 22.38% | 22.56% |
| Power Tolerance | 0～+5 | |||||
| Temperature Coefficient of Pmax | -0.30%/℃ | |||||
| Temperature Coefficient of Voc | -0.25%/℃ | |||||
| Temperature Coefficient of Isc | 0.044%/℃ | |||||
| Standard Test Environment | lrradiance 1000W/㎡,cell temperature 25°C, spectrum AM1.5 | |||||
Product Description

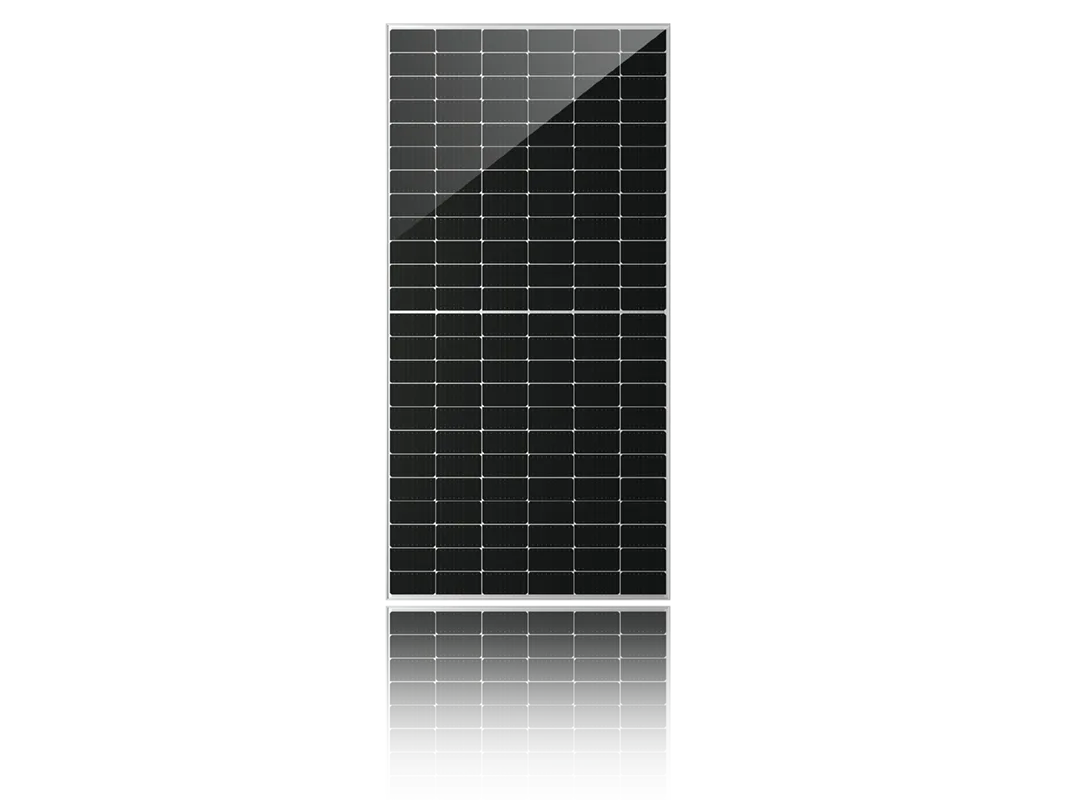

The DHM66D60-TP is a high-performance bifacial solar module with a rated power output ranging from 585W to 610W. Its double-glass structure enables the module to generate electricity from both the front and rear sides, helping improve total energy yield when installed in suitable reflective environments.
Designed for commercial, industrial and utility-scale photovoltaic projects, this module combines high power output, durable construction and efficient use of installation space. The glass-glass design provides reliable protection for the solar cells, supporting stable long-term performance in demanding outdoor environments.
Key Features
- High power output from 585W to 610W
- Bifacial power generation from both sides
- Durable double-glass module construction
- Increased energy yield under suitable conditions
- Reliable performance in demanding environments
- Efficient use of available installation space
- Suitable for large-scale photovoltaic systems
Typical Applications
- Utility-scale solar power plants
- Commercial and industrial PV systems
- Ground-mounted solar installations
- Large industrial rooftop projects
- Bifacial photovoltaic systems
- Solar EPC and renewable energy projects
Reliable Performance for Modern Solar Projects
By combining high power output with bifacial generation and a durable double-glass structure, the DHM66D60-TP offers an efficient solution for modern PV installations. Its higher module wattage can help reduce the number of panels, supporting structures and electrical connections required for a specified system capacity, potentially lowering overall balance-of-system costs.
Contact DAHAI SOLAR for product datasheets, technical support, project quotations and customized photovoltaic solutions.
