The DH261L-100KGC is suitable for commercial and industrial energy applications that require integrated photovoltaic and energy storage solutions.

Modell	DH261L-100KGC
PV
Maximum input power	156KW
naximum input voltage	1100V
MPPT operating voltage range/Rated voltage	180-800V/550V
Start Voltage	195V
Maximum input/short circuit current	2x32A/2x40A
MPPT quantity	10
BatterySide
Cell Specification	LFP 3.2V/314Ah
Battery RACK Configuration	1P260S
System capacity	261kWh@25°C,0.5P
Voltage range/Nominal Voltage	702-936V/832V
Lebensdauer	8000Cycles(0.5P,25+2°C,@70%SOH)
Ac grid connection side/ Ac off-network side
Nennleistung	100kW
Allowable Grid Voltage Range	400V(-15%~+15%)
Way of Connection	3P+N+PE
Allowable Grid Frequency Range	50/60Hz(45-55Hz,55-65Hz)
Maximum current output	181.8A
System Parameter
Off-grid switching time	<20ms
Dimension(W*D*H) Including airconditioning and hybrid inverter	1550*1300*2300mm Including Inverter
Gewicht	2770kg
System Efficiency	≥88%
Environmental Temperature	-20~55°C
Humidity	≤95%
Cooling method	Liquid cooling
Fire safety configuration	Aerosol
Communication Interface	Ethernet/CAN/RS485
Compliant with standards	GB/T 34120,GB/T 36276,UN38.3
Maximum working altitude	2000m

Wichtigste Merkmale

261kWh Energy Storage Capacity

The system provides 261kWh of energy storage capacity, making it suitable for a variety of commercial and industrial energy storage applications.

Liquid-Cooling Design

Featuring a liquid-cooling solution, the system is designed with thermal management as part of its integrated energy storage configuration.

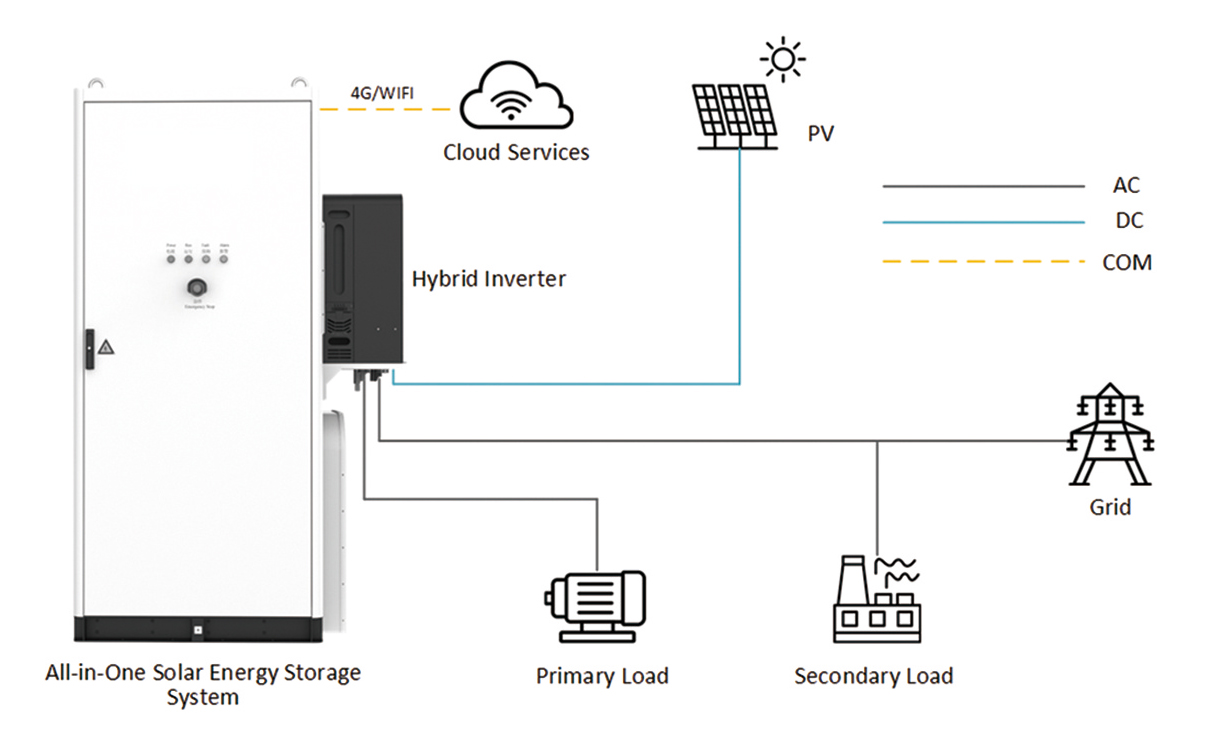

All-in-One Integrated Solution

The all-in-one design combines photovoltaic and energy storage functions into an integrated solution, helping simplify system deployment and project integration.

Designed for PV-ESS Applications

The system is developed for applications combining photovoltaic power generation and energy storage.

Suitable for Commercial and Industrial Projects

The integrated configuration makes the system suitable for commercial and industrial energy projects requiring photovoltaic and energy storage solutions.

Anwendungen

Energiespeicherung für gewerbliche Zwecke

Suitable for commercial applications that require integrated photovoltaic and energy storage solutions.

Industrial Energy Storage

Can be used in industrial energy projects where energy storage and photovoltaic integration are required.

Photovoltaic Energy Storage Projects

Designed for projects combining solar power generation with energy storage.

Commercial & Industrial PV-ESS Applications

The integrated all-in-one configuration provides a practical solution for commercial and industrial photovoltaic energy storage applications.

Why Choose DH261L-100KGC?

Die DH261L-100KGC Liquid-Cooling All-in-One PV-ESS provides an integrated solution for photovoltaic and energy storage applications.

With a 261kWh energy capacity, liquid-cooling design, and all-in-one system configuration, it is designed for commercial and industrial projects requiring integrated photovoltaic energy storage solutions.

The system helps provide a practical solution for projects that need photovoltaic generation and energy storage within an integrated energy system.

Integrated PV and Energy Storage Solution

The growing demand for renewable energy is increasing the need for integrated photovoltaic and energy storage solutions.

Die DH261L-100KGC combines PV-ESS functionality in an all-in-one system with 261kWh of energy storage capacity. Its liquid-cooling configuration and integrated design make it suitable for commercial and industrial photovoltaic energy storage projects.

Contact us to learn more about the DH261L-100KGC and find the right PV-ESS solution for your project.
