| Modell | DH-R100-211-CE |
|---|---|
| Cell Type | LFP-300Ah |
| Grouping Mode | 1P44S*5 |
| Charge/Discharge Rate | 0.5P@25°C |
| Nominal Energy (kWh) | 211 |
| Voltage Range(V) | 600~803 |
| AC Side | |
| AC Voltage (V) | 400 (-20%~15%) |
| Rated Power (kW) | 100 |
| PCS Maximum Efficiency (%) | 98 |
| Total Harmonic Distortion Ratio (%) | <3 |
| System Parameters | |
| Work Temp Range (°C) | -20~50 (derating required at above 45℃ |
| Work Humidity Range (%) | 5~95 |
| Cooling Mode | Liquid-cooled |
| Altitude (m) | ≤2000 (> 2000 Derated Use) |
| Maximum System Efficiency (%) | 90 |
| System Cycle Life | ＞8000,0.5c@25°C,90%DOD |
| Fire Protection System | Aerosol FSS |
| Ingress Protection | IP55 |
| Communication Port | 4G、 RS485、 Ethernet |
| Communication Protocol | Modbus/MQTT |
| Certification | GB/T36276、 IEC62619、 IEC62477、IEC61000、UN38.3 |
| Dimension (W*D*H)mm | 1340*1300*2260 |
| Weight (T) | 2.6 |
Wichtigste Merkmale
- Integrated cabinet-type energy storage design
- Designed for commercial and industrial energy storage applications
- Supports single-cabinet and multi-cabinet configurations
- Suitable for integration with photovoltaic systems
- Organized cabinet structure for convenient system deployment
- Designed for efficient energy storage and management
- Suitable for different commercial and industrial energy projects
Anwendungen

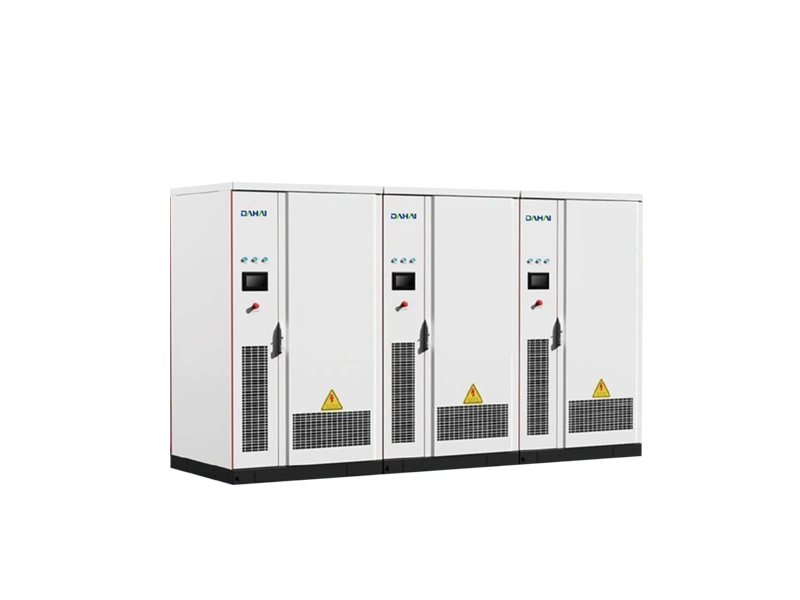

Die DH-R100-211-CE Energy Storage System is suitable for commercial buildings, industrial facilities, factories, photovoltaic energy storage projects, and other C&I energy management applications.
It can be deployed as a standalone cabinet or combined with multiple units to create a larger energy storage solution according to project requirements.
